Image Processing

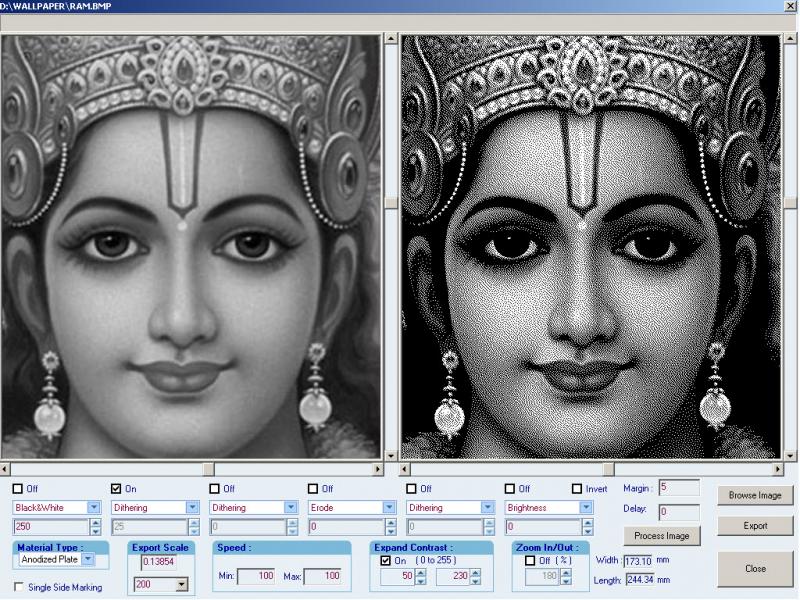

  • Image Processing


    • TOOLS & API: VC++, Video Capturing, VB Script
    This Library contains set of functions to perform Image processing Operation on any bitmap file Or Binary Data. This also contains video capturing Routines to capture live video & process it frame & ROI as per required.
    • 2D Object Dimension Measurement
    • Edge Detection
    • Object Orientation Measurement
    • Video Image Grabbing & Processing
    • Pixel Operation
    • ROI Based Operation

  • Machine Automation

  • Bearing Marking





    • TOOLS & API: VC++,Video Capturing

    The concept of the project is when the bearing sense the conveyer belt is stopped and the gripper comes from the both side and fix the position of the bearing. Then marking starts. when marking is completed the Conveyer belt is Running again. this automation process is continued again.



    • Bearing Marking
    • Bearing Fault Detection
    • ROI Based Operation Support
    • Conveyer Based Automation Process

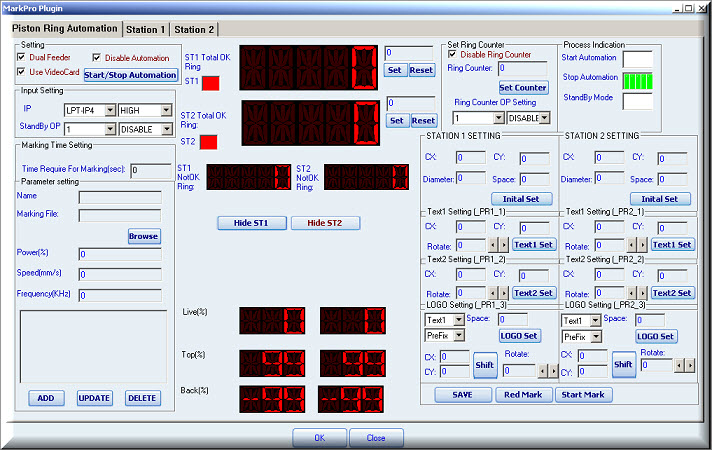

  • Piston Ring Marking



    • TOOLS & API: VC++,Video Capturing

    The piston Ring Marking Automation is industrial Automation concept with Single or Dual feeder video for Ring taper Detection, Flapper Controlling for collecting OK and Not Ok Ring. When the Ring comes under the video and captures the image. Ring segregation will decide weather The ring is OK or Not OK.



    • Ring Inner Taper Measurement
    • Ring Outer Taper Measurement
    • Ring Diameter Measurement
    • ROI Based Operation Support
    • Conveyer Based Automation Process
